small 2 inch 2.13'' e-ink display 250x122 SPI interface screen

  • 1 - 99 Pieces
    $5.47
  • 100 - 99999 Pieces
    $4.77
  • >=100000 Pieces
    $3.28
Type:
EPD
Supplier Type:
Original manufacturer
Lead Time:
Quantity(Pieces) 1 - 50000 >50000
Est. Time(days) 60 Negotiable
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)

More

Touch Panel (Min. Order: 500 Pieces)
LED Frontlight (Min. Order: 500 Pieces)
Other Accessories (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Display Size:
2.13 inch
Place of Origin:
Liaoning, China
Model Number:
GDEH0213B72
Brand Name:
GooDisplay
Type:
Dot Matrix
Resolution:
250x122

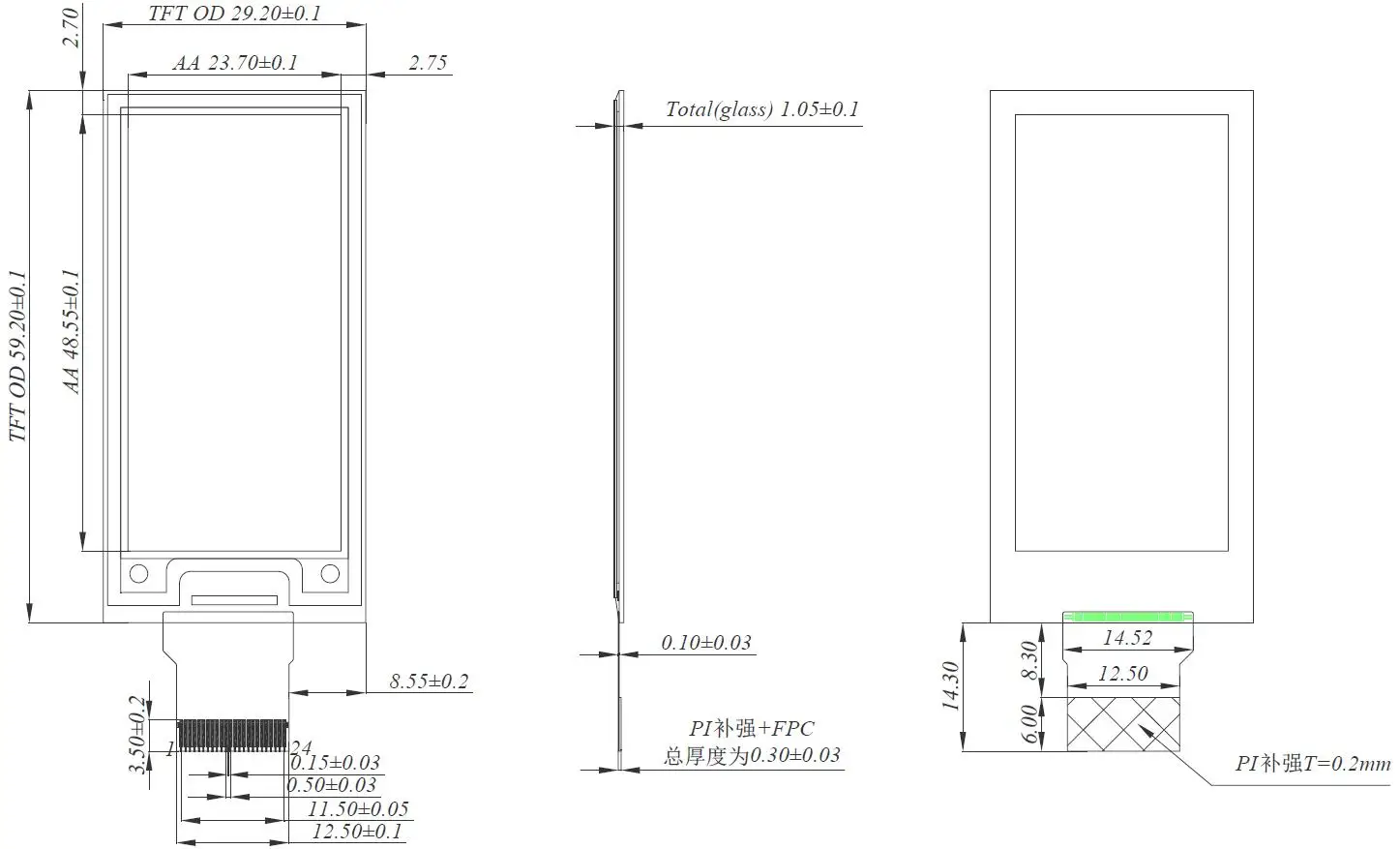

Outline Size (mm):
29.2x59.2x1.05
Active Size (mm):
23.7x48.55
Pixel Pitch (mm):
0.19420.1943
Operating Temp.:
0℃~50℃
Storage Temp.:
-20℃~60℃
Color:
Black,White
Interface:
SPI
Max Grayscale:
2
Product Certification certification
CE Certified.
Valid from 2018-12-13 until 2049-12-31
Supply Ability
Supply Ability:
50000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
TBD
Port
DALIAN
Lead Time :
Quantity(Pieces) 1 - 50000 >50000
Est. Time(days) 60 To be negotiated
General Description
This is a black-white 2.13 inch e-ink display with 250x122 resolution, 24 pins FPC connection, SPI interface. The full refresh rate is 2s/frame, the partial refresh rate is 0.3s/frame. The I2C signal master interface to read built-in temperature sensor. Its IC is SSD1675A. We also have black-white-red and black-white-yellow for you to choose.

In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH0213B72 is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.

If you need any electronic paper display accessories, such as touch panel, frontlight, electronic label shell, please contact us, we could provide the customized services for you.

What's included in the package


Standard Accessory Name
Qty
1
small 2 inch 2.13'' e-ink display 250x122 SPI interface screen
1
2
FPC connector
1
3
Relevant manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32 )
1

Main Parameters

Part Number
GDEH0213B72
Size
2.13 inch
Type
Dot Matrix
Resolution
250x122
IC Driver
SSD1675A
Outline Size(mm)
29.2x59.2x1.05
Active Size(mm)
23.7x48.55
Pixel Pitch(mm)
0.1942x0.1943
Operating Temp.
0℃~50℃
Storage Temp.
-25℃~60℃
Connector
24 Pin FPC, Pitch:0.5mm
Max Grayscale
2
Color
Black,White
Partial Reresh Time(s)
0.3
Refresh Time(s)
2
Power Consumption(mW)
26.4
Standby Power Consumption(mW)
0.0165
Power Supply(V)
3.3
Interface
SPI
Particulars
Features
● SPI Interface

● 250x122 Resolution

● It faster than other 2.13 inch e-ink display. The full refresh rate is 2s/frame, other 2.13 inch EPD's rate is usually 3s/frame.

● Color optional. We also have black-white-red and black-white-yellow for you to choose.

● It could support partial refresh, the refresh rate is 0.3s/frame.
Other Products
Same Size Product List
Part Number
Resolution
Refresh Time(s)
Color
Feature
212x104
3
Black, White
Flexible, Support Partial Refresh
212x104
3
Black, White
Support Partial Refresh
4 Grayscale
250x122
-
Black, White
Support Partial Refresh
212x104
3
Black, White
Low Temperature, Support Partial Refresh
212x104
3
Black, White
Low Temperature, Support Partial Refresh
212x104
15
Black, White, Red
Tri-color
250x122
13
Black, White, Red
Tri-color
250x122
-
Black, White, Red
Tri-color
212x104
18
Black, White, Yellow
Tri-color
About Us
Matched Demo Kit
We can provide you demo kit and technical support.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Development Kit for SPI interface dot matrix e- ink Display on STM32 Platform.
Development Kit for SPI interface dot matrix e- ink Display on Arduino platform.
Development Kit for SPI interface dot matrix e- ink Display on Raspberry Pi.Also it can driving our e-paper display with touch panel and frontlight.
The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves.
The ESP32-02 development kit supports Wi-Fi and Bluetooth, users need to develop by themselves.
