goodisplay small 2 inch e-ink screen display monitor low temperature

  • 1 - 99 Pieces
    $6.07
  • 100 - 99999 Pieces
    $5.08
  • >=100000 Pieces
    $3.18
Type:
EPD
Supplier Type:
Original manufacturer
Lead Time:
Quantity(Pieces) 1 - 3000 >3000
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 10000 Pieces)
Customized packaging (Min. Order: 10000 Pieces)
Report Suspicious Activity
Overview
Quick Details
Display Size:
2.13 inch
Place of Origin:
Liaoning, China
Model Number:
GDEW0213V7LT
Brand Name:
GooDisplay
Type:
Dot Matrix
Resolution:
212x104
Outline Size (mm):
59.2x29.2x0.98
Active Size (mm):
48.55x23.71
Pixel Pitch (mm):
0.229x0.228
Operating Temp.:
-25℃~10℃
Storage Temp.:
-25℃~70℃
Color:
Black,White
Interface:
SPI
Max Grayscale:
2
Product Certification certification
CE Certified.
Valid from 2018-12-13 until 2049-12-31
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
TBD
Port
DALIAN
Lead Time :
Quantity(Pieces) 1 - 3000 >3000
Est. Time(days) 45 To be negotiated

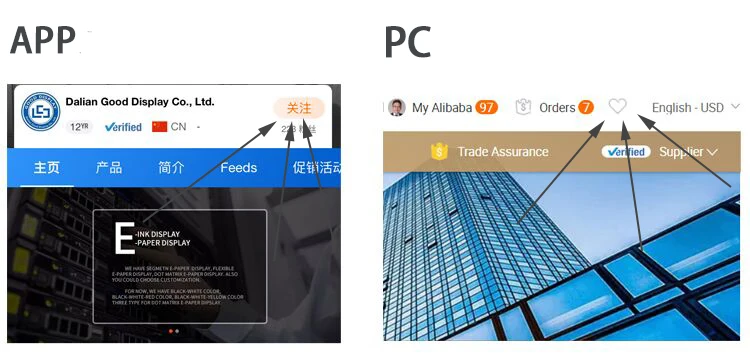

Add us to favorites, and you can receive real-time news from our shop, such as new product launching, technology improvement, coupons, and other promotion campaign. Refer to below image to add us by pressing "❤", warmly welcome to join us
General Description
This is a low temperature (-25℃~10℃) 2.13 inch 212x104 e-paper display, communicating via SPI interface.The refresh time is 3s, the partial refresh time is 0.3s. The I2C signal master interface to read built-in temperature sensor. Its IC is UC8151D.
In view of so many advantages: ultra low temperature, ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEW0213V7LT is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products in cold area.

What's included in the package


goodisplay small 2 inch e-ink screen display monitor low temperature

No.
Standard Accessory Name
Qty
1
2.13'' e-paper display 212x104 GDEW0213V7LT
1
2
FPC connector
1
3
Come with helpful development demo kit with resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32 )
1

Main Parameters


Part Number
GDEW0213V7LT
Size
2.13 inch
IC
UC8151D
Type
Dot Matrix
Resolution
212x104
Outline Size(mm)
59.2x29.2x0.98
Active Size(mm)
48.55x23.71
Pixel Pitch(mm)
0.229x0.228
Operating Temp.
-25℃~10℃
Storage Temp.
-25℃~+70℃
Connector
24 PIN, Pitch: 0.5mm
Max Grayscale
2
Color
Black, White
Partial Reresh Time(s)
0.3
Refresh Time(s)
3
Power Consumption(mW)
26.4
Standby Power Consumption(mW)
0.0165
Power Supply(V)
3.3
Interface
SPI

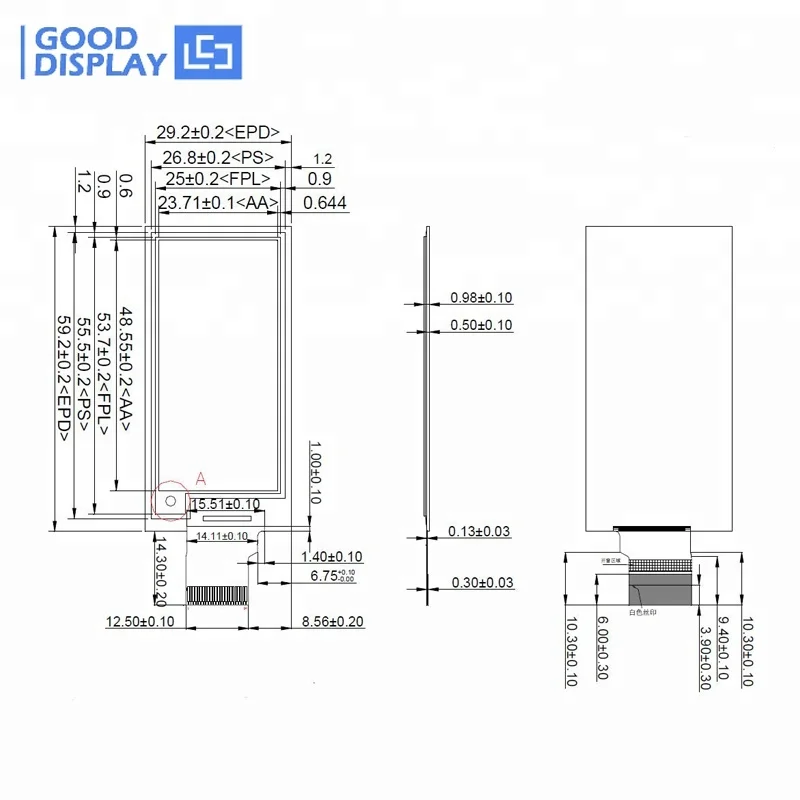

Drawing
Particulars
Matched Demo Kit
We can provide you demo kit and technical support.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.

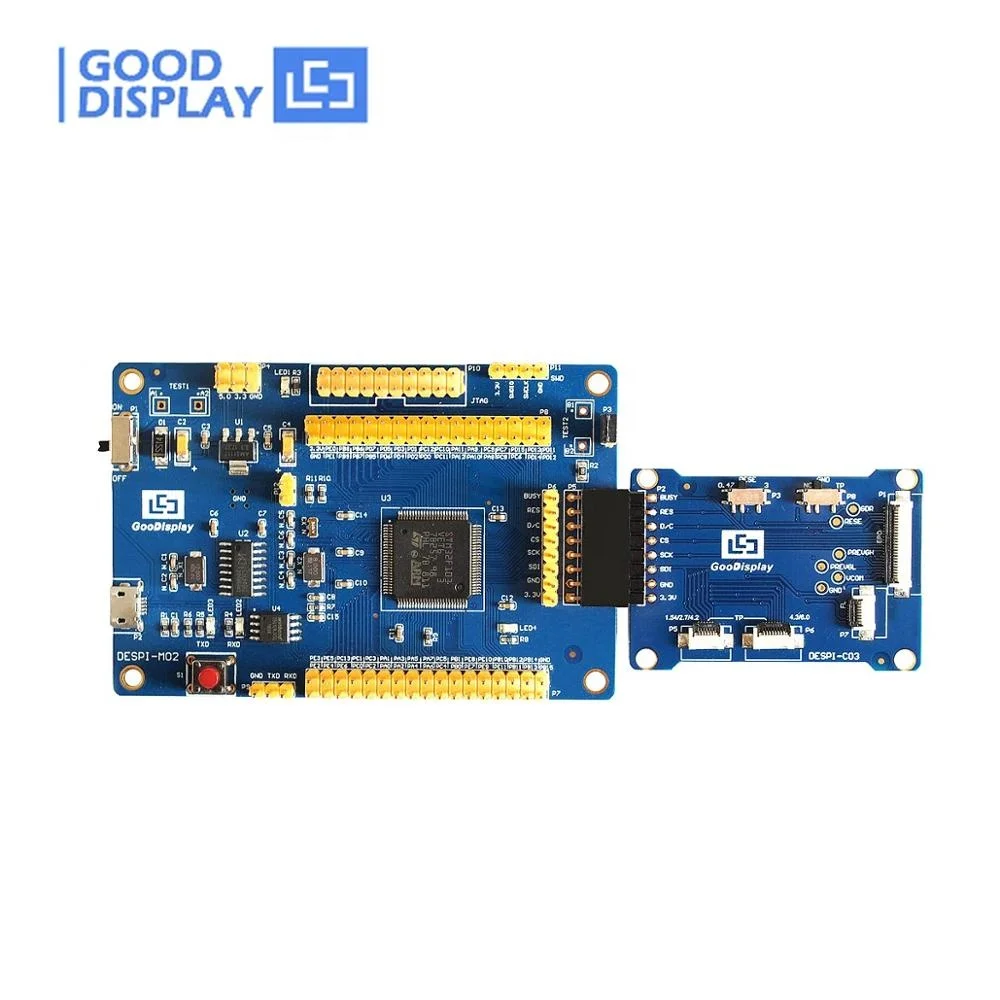

Development Kit for SPI interface dot matrix e- ink Display on STM32 Platform.
Development Kit for SPI interface dot matrix e- ink Display on Arduino platform.
Development Kit for SPI interface dot matrix e- ink Display on Raspberry Pi.Also it can driving our e-paper display with touch panel and frontlight.
The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves.
The ESP32-02 development kit supports Wi-Fi and Bluetooth, users need to develop by themselves.

Other Products
Same Size Product List
Part Number
Resolution
Refresh Time(s)
Color
Feature
212x104
3
Black, White
Flexible, Support Partial Refresh
250x122
2
Black, White
Support Partial Refresh
212x104
3
Black, White
Support Partial Refresh
4 Grayscale
250x122
-
Black, White
Support Partial Refresh
212x104
3
Black, White
Low Temperature, Support Partial Refresh
212x104
15
Black, White, Red
Tri-color
250x122
13
Black, White, Red
Tri-color
250x122
-
Black, White, Red
Tri-color
212x104
18
Black, White, Yellow
Tri-color
