E020 E021 4.2inch 400x300 e ink e paper panel

FOB Reference Price:Get Latest Price
  • 2 - 49
    US $20.59
  • >=50
    US $16.50
Supply Ability:
1000000 Piece/Pieces per Month
Report Suspicious Activity
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
good display
Model Number:
Dot Matrix
Outline Size(mm):
Actve Size(mm):
Pixel Pitch(mm):
Operating Temp.:
Storage Temp.:
24 Pin FPC, Pitch:0.5mm
Packaging & Delivery
Packaging Details
Delivery Time
General Description

Introduction & Features:

This is a color type e-paper, with black, white and red color,Resolution is 400x300, good enough for most of the applications. Support black, white color or black, white, red color.(optional)
Wide viewing angle makes the display easily readable from all directions.
Sunlight Readable! Displays reflect light like ordinary paper, making them easy to read in direct sunlight.Bi-stable image displays without any flickering.

Supports 4 wire SPI for communications
Long lifetime: ~5 years / ~1M updates.

Parameters & Drawing

Main Parameters:

4.2inch 400x300 e ink e paper panel

Part Number
Dot Matrix
Outline Size(mm)
Actve Size(mm)
Pixel Pitch(mm)
Operating Temp.
Storage Temp.
24 Pin FPC, Pitch:0.5mm

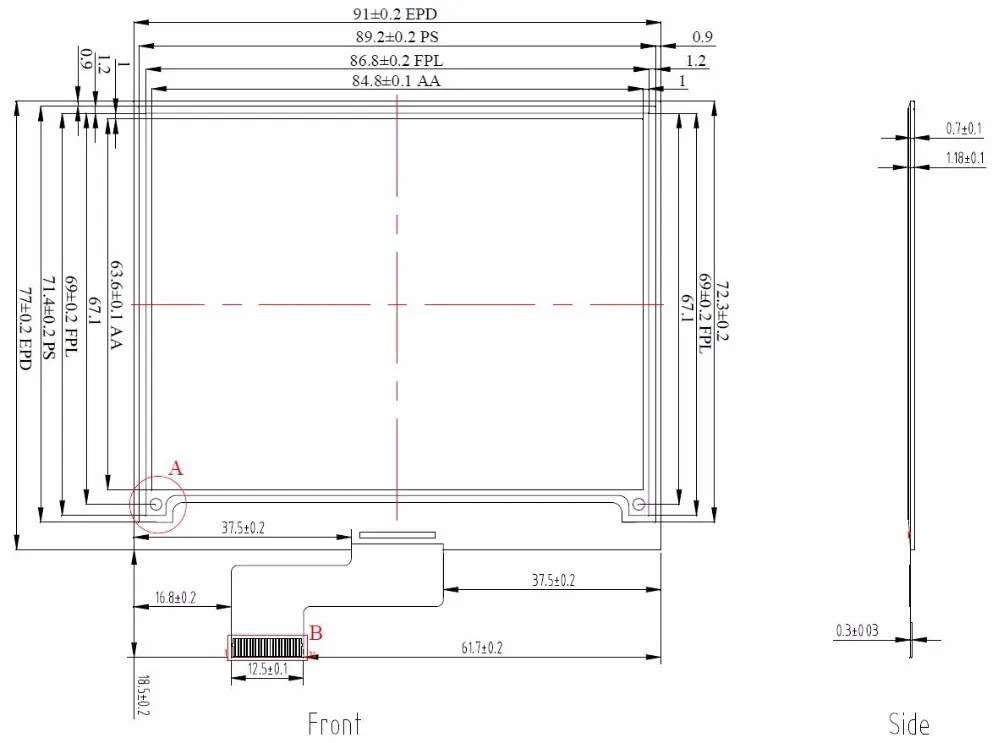

Simple Drawing:

COG Type, use TFT ITO Glass as substrate.

Matched Demo Kit

Highly Recommend

Development Kit for SPI interface dot matrix E ink displays.(1.54''/2.04''/2.13''/2.7''/2.9''/4.2''/7.5'')

Notice that the above price does not include the Demo Kit. In order to learn more or purchase demo, click the picture please.

Position1.While shorting RESE and 3.0Ω resistor, this model is suitable for the following E-Paper displays:
1.1.54 inch E-Paper Display: GDEP015OC1, and GDEW0154Z04
2.2.04 inch E-Paper Display: GDE021A1
3.2.13 inch E-Paper Display: GDEW0213B1
4.2.9 inch E-Paper Display: GDEH029A1
5.7.5 inch E-Paper Display: GDEW075T8 and GDEW075Z09
Position 2.While shorting 0.47Ω resistor and RESE, this mode is suitable for the following E-Paper displays:
1.1.54 inch E-Paper Display: GDEW0154T8
2.2.13 inch E-Paper Display: GDEW0213Z16
3.2.7 inch E-Paper Display: GDEW027W3 and GDEW027C44
4.2.9 inch E-Paper Display: GDEW029T5 and GDEW029Z10
5.4.2 inch E-Paper Display: GDEW042T2 and GDEW042Z15
