Overview
Quick Details
- Display Size:
-
7.5 inch
- Place of Origin:
-
Liaoning, China
- Model Number:
-
GDEH075Z90R
- Brand Name:
-
GooDisplay
- Type:
-
Dot Matrix
- Resolution:
-
880x528
- Outline dimension(mm):
-
170.2x111.2x1.25
- Active Size(mm):
-
163.24x97.94
- Pixel Pitch(mm):
-
0.1855x0.1855
- Operating Temperature:
-
0℃~40℃
- Storage Temperature:
-
0℃~40℃
- Color:
-
Black, White, Red
- Interface:
-
SPI
- Connection:
-
24pin 0.5pitch FPC
Product Certification
- CE Certified.
- Valid from 2018-12-13 until 2049-12-31
Supply Ability
- Supply Ability:
- 300000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- TBD
- Port
- DALIAN
- Lead Time :
-
Quantity(Pieces) 1 - 3000 >3000 Est. Time(days) 45 To be negotiated
General Description

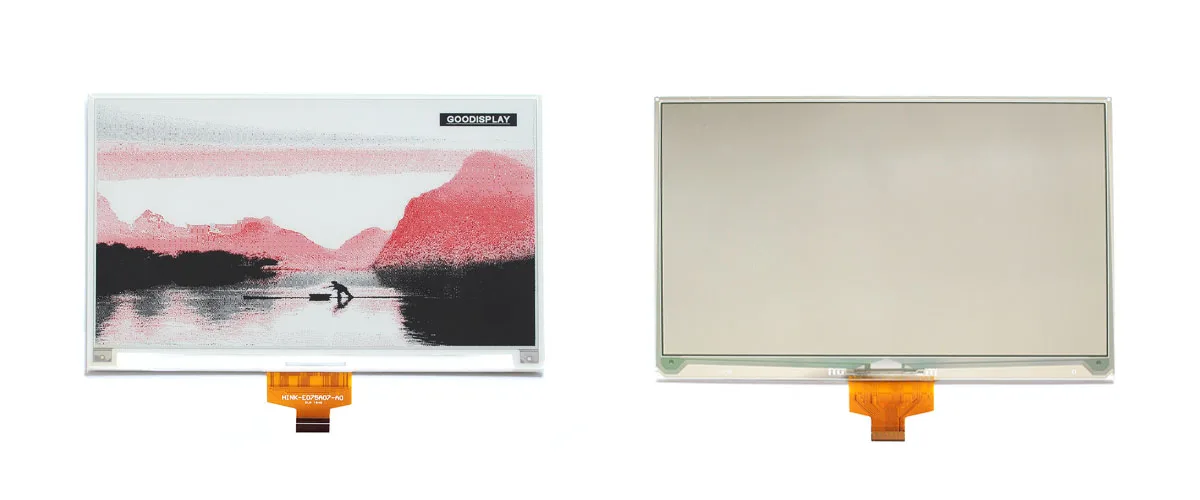

This is a color 7.5 inch 880x528 e-paper display, 24 pins FPC connection, SPI interface. The refresh rate is 22s/time. Its IC is SSD1677. The I2C signal master interface to read built-in temperature sensor. We also have black-white and black-white-yellow for you to choose.
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH075Z90R is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
If you need any electronic paper display accessories, such as touch panel, frontlight, electronic label shell, please contact us, we could provide the customized services for you.
Note: All of 3-color epaper doesn't support partial refresh
In view of so many advantages: ultra low power consumption, near 180 degree view angle, readable under sunlight, GDEH075Z90R is a very good choice for applications like shelf label, smart tags, smart home application, industrial instrument, smart cards and other related products.
If you need any electronic paper display accessories, such as touch panel, frontlight, electronic label shell, please contact us, we could provide the customized services for you.
Note: All of 3-color epaper doesn't support partial refresh
What's included in the package
color 7 inch 7.5 inch e-ink epaper display big screen
No. | Standard Accessory Name | Qty |
1 | B/W/R color 7 inch 7.5 inch e-ink epaper display big screen | 1 |
2 | FPC connector | 1 |
3 | Relevant manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32 ) | 1 |
Main Parameters
Part Number | GDEH075Z90R |
Size | 7.5'' |
IC | SSD1677 |
Type | Dot Matrix |
Resolution | 880x528 |
Outline Size(mm) | 170.2x111.2x1.25 |
Active Size(mm) | 163.24x97.94 |
Pixel Pitch(mm) | 0.1855x0.1855 |
Operating Temp. | 0℃~40℃ |
Storage Temp. | 0℃~40℃ |
Connector | 24 Pin FPC, Pitch:0.5mm |
Color | Black,White,Red |
Interface | SPI |
Refresh Time(s) | 22 |
Power Consumption(mW) | 40 |
Standby Power Consumption(mW) | 0.006 |
Power Supply(V) | 3.3 |

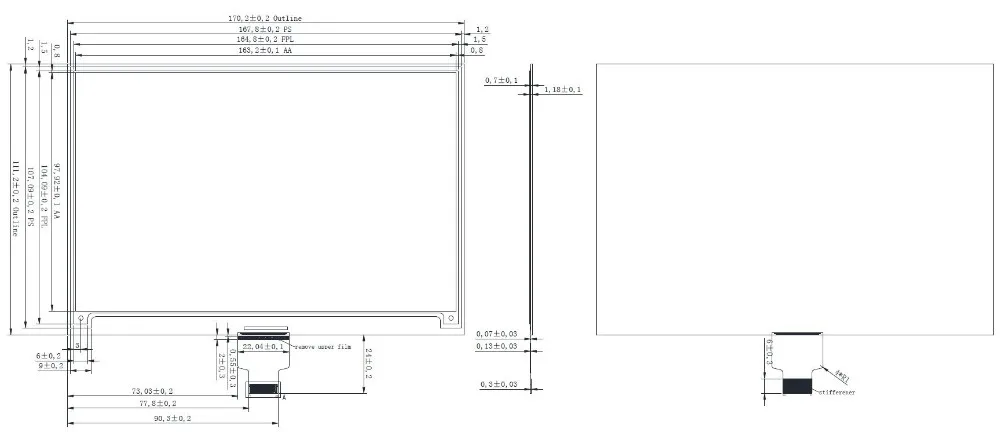

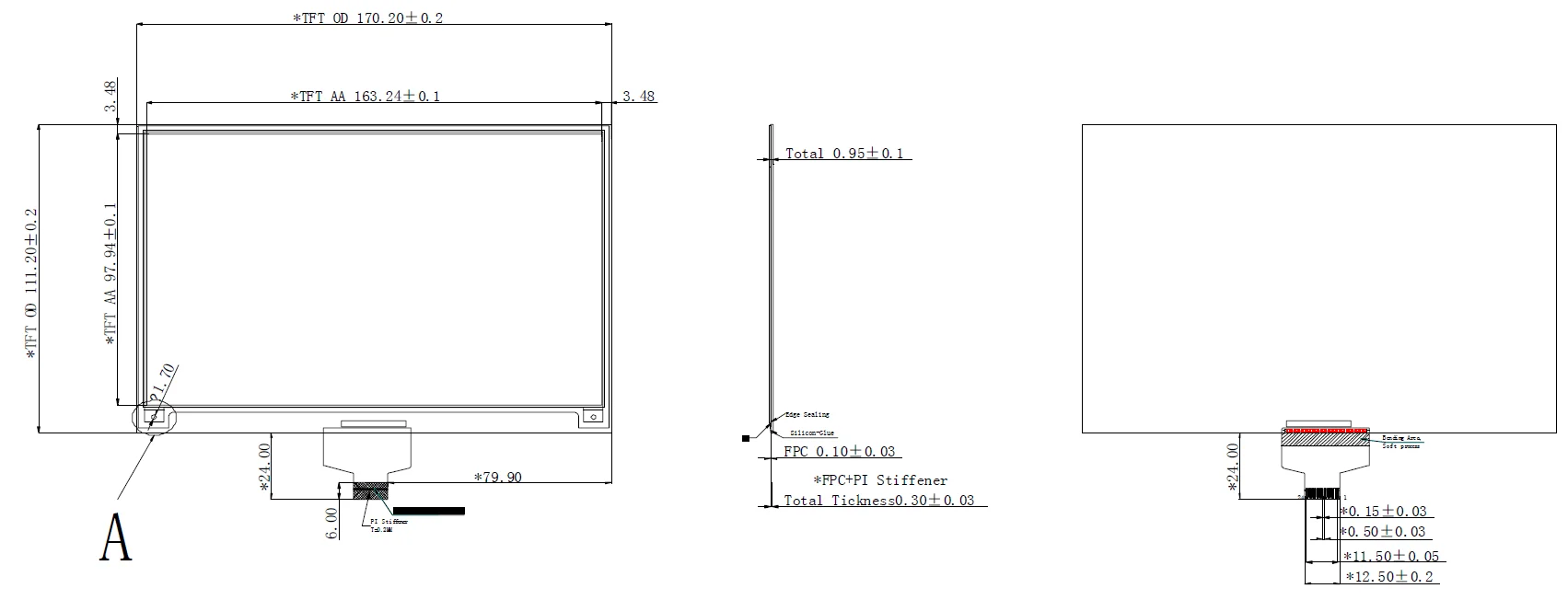

Drawing
Particulars
Features
● SPI Interface
● 880x528 Resolution
● Its refresh rate is 22s/time.
● 880x528 Resolution
● Its refresh rate is 22s/time.
Other Products
Same Size Product List
Part Number | Resolution | Refresh Time(s) | Color | Feature |
800x480 | 4 | Black, White | SPI Interface | |
800x480 | 38 | Black, White, Yellow | Tri-color |
About Us
Matched Demo Kit
We can provide you demo kit and technical support.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Development Kit for SPI interface dot matrix e- ink Display on STM32 Platform.
Development Kit for SPI interface dot matrix e- ink Display on Arduino platform.
Development Kit for SPI interface dot matrix e- ink Display on Raspberry Pi.Also it can driving our e-paper display with touch panel and frontlight.
The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves.
The ESP32-02 development kit supports Wi-Fi and Bluetooth, users need to develop by themselves.
